Alpine Trail XR Frame Kit

$2,149.00 *

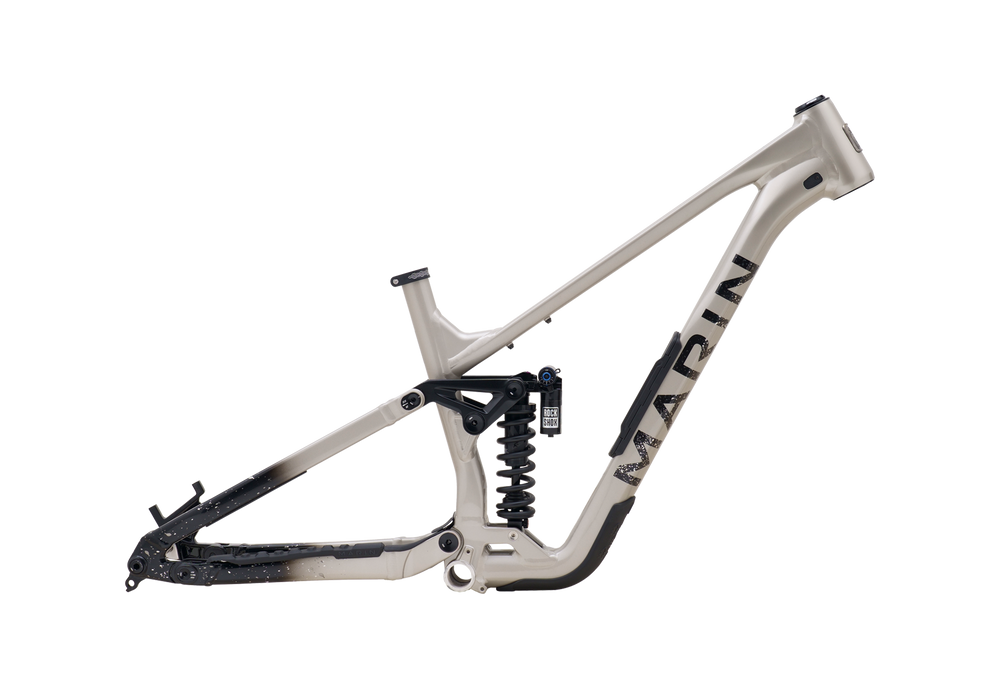

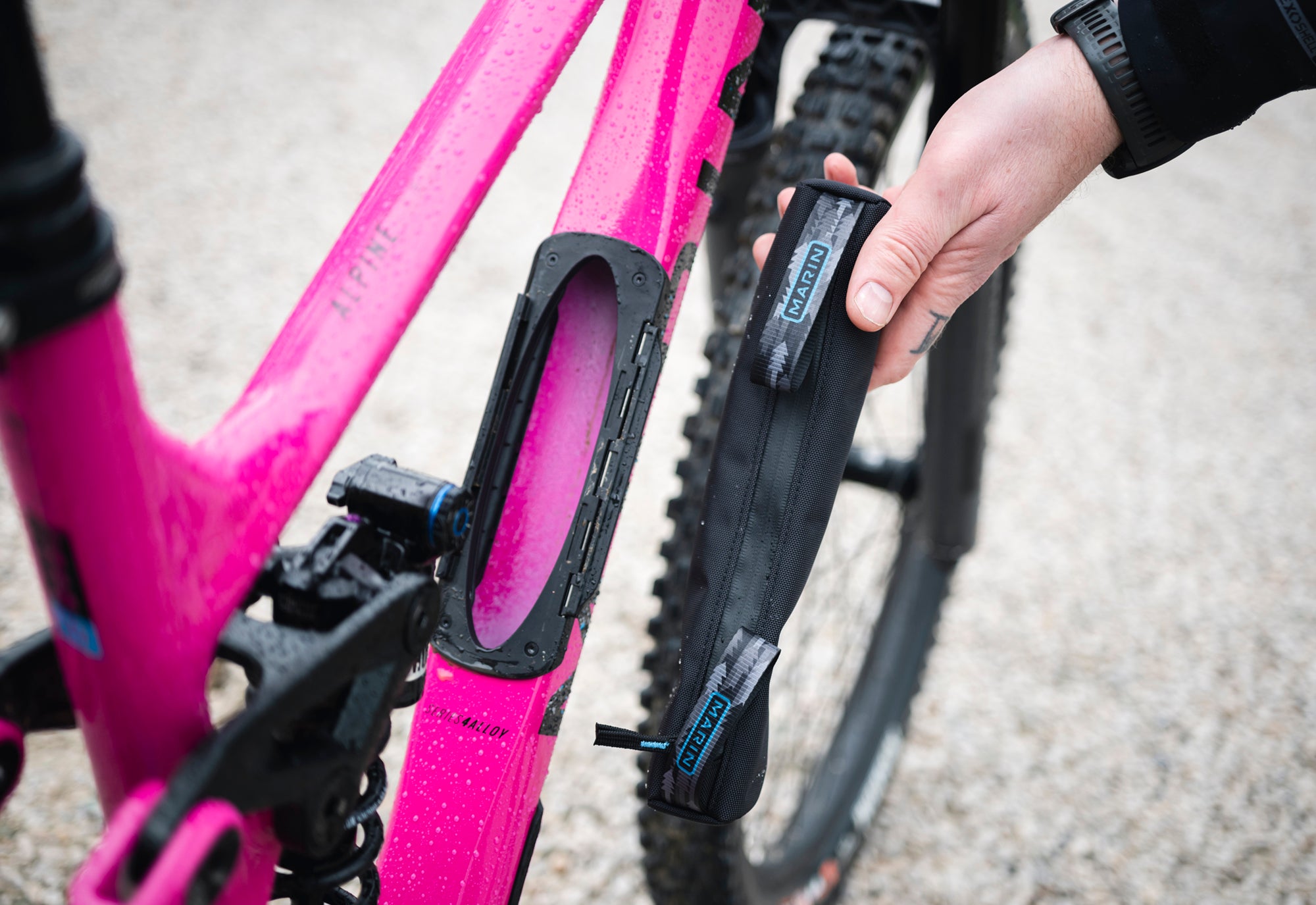

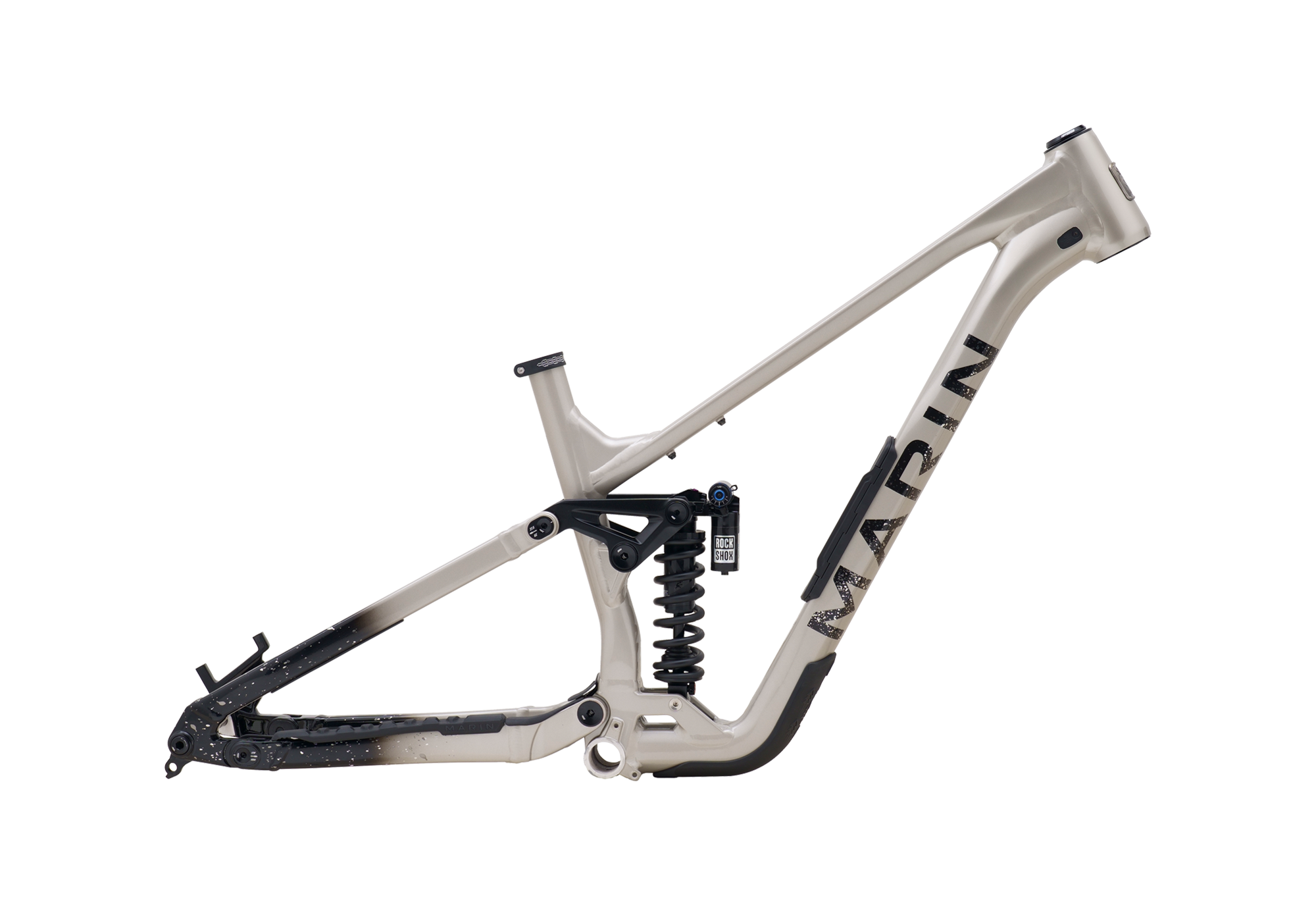

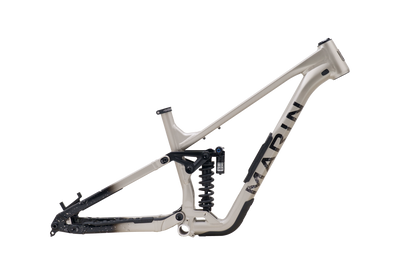

The new Marin Alpine Trail Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seat post increases strength and is compatible with the latest dropper posts.

The Alpine Trail XR Frame Kit gives the rider the chassis to create the Alpine Trail that best meets their ride needs. All the essentials are included, from the rear shock to the headset, the rear axle and seat tube collar. You bring your creativity and components to create the raddest bike on the trail.

* Manufacturer’s suggested retail price may not include additional shipping or preparation charges and does not include applicable US sales tax. Please contact your local Marin dealer for a quote.

Colour: SILVER BLACK

Size

Tech Documents

View tech documents here (opens in new tab)

Geometry Services

Geometry	S	M	L	XL
A Stack	620	634	643	647
B Reach	430	460	490	520
C Headtube angle	63.5°	63.5°	63.5°	63.5°
D Headtube length	100	115	125	130
E Seattube length	400	420	430	460
F Seattube angle	79°	79°	79°	79°
G Toptube effective	556	592	626	659
H Bb height	352	352	352	352
I Bb drop	24 \| 7	24 \| 7	24 \| 7	24 \| 7
J Chainstay	435	435	435	435
K Wheelbase	1211	1248	1283	1318
L Standover height	683	690	695	698
M Fork offset	44	44	44	44
N Seatpost diameter	34.9	34.9	34.9	34.9
O Handlebar width	780	780	780	780
P Stem length	35	35	35	35
Q Crank length	160	160	160	160
