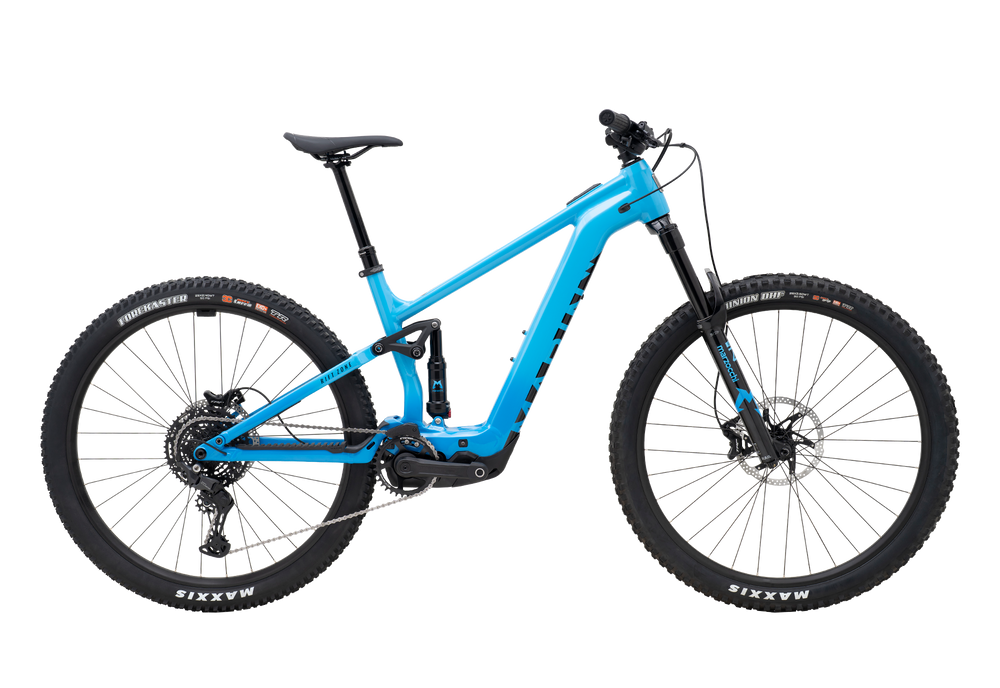

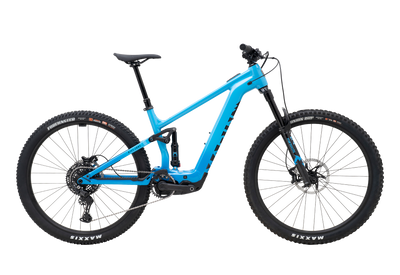

Rift Zone EL1

$5,199.00 *

The all-new Rift Zone EL (""Electric Light"") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget it's an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes

* Manufacturer’s suggested retail price may not include additional shipping or preparation charges and does not include applicable US sales tax. Please contact your local Marin dealer for a quote.

Colour: BLUE/NAVY

Size

Specifications Geometry Technology Services

Rift Zone EL1

$5,199.00

Colour: BLUE/NAVY

Size

Details Specifications

App

Bosch eBike Flow App

Range

15-55 miles/25-90km

Display

Bosch BRC3100 Systems Controller

Switch

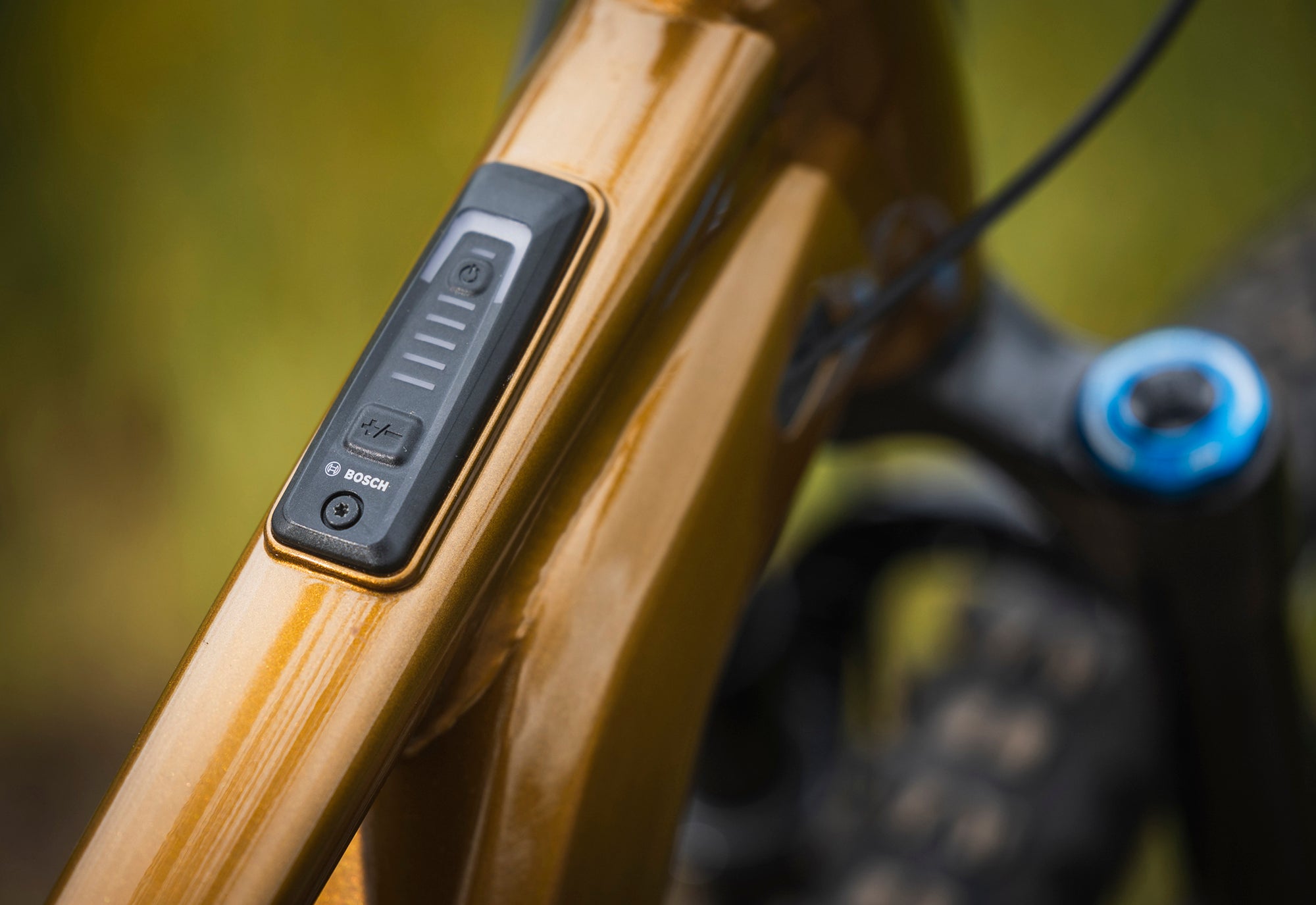

Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

Battery

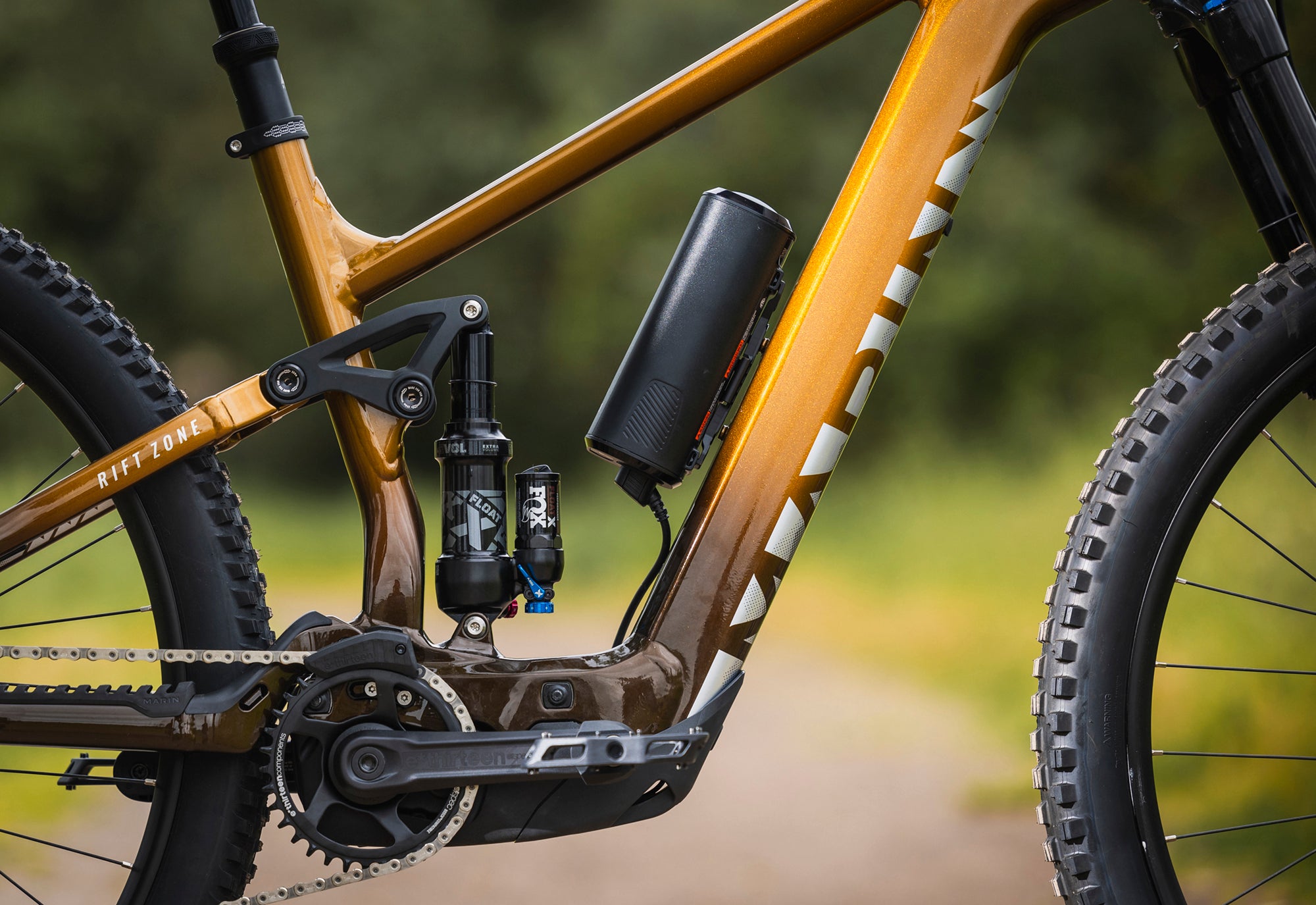

Bosch 400 Wh Internal (Optional PowerMore 250wh external battery using PowerMore 150mm cable EB12.120.036)

Motor

Bosch Performance Line SX, 600W, 55Nm

Frame

All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Front Suspension

Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset

Rear Suspension

Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

Rim

Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear

Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock

Hub Front

Shimano, 110x10 Thru Axle, 32H, Centerlock

Spokes

14g Black Stainless Steel

Tires

Front: Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

Shift Lever

Shimano CUES SL-U6000-10R, 10-Speed

Crankset

e*thirteen e*spec Plus, 160mm Length, 34T

Chain

Shimano LG500

Cassette

Shimano CS-LG300-10, 11-48T

Brakes Front

TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

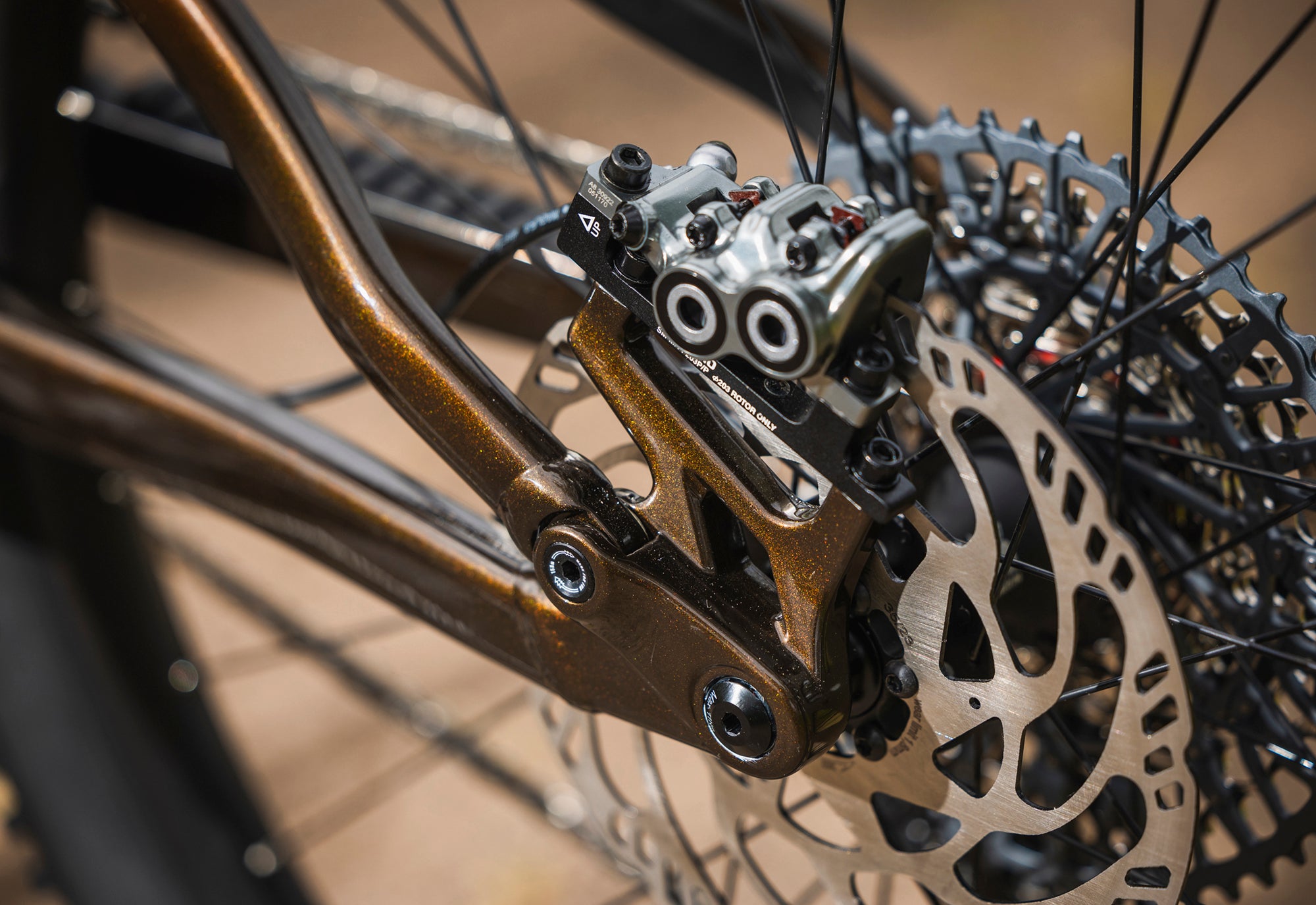

Brakes Rear

TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Brake Levers

TRP Slate EVO, I-Spec EV Compatible

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin Grizzly Lock-On

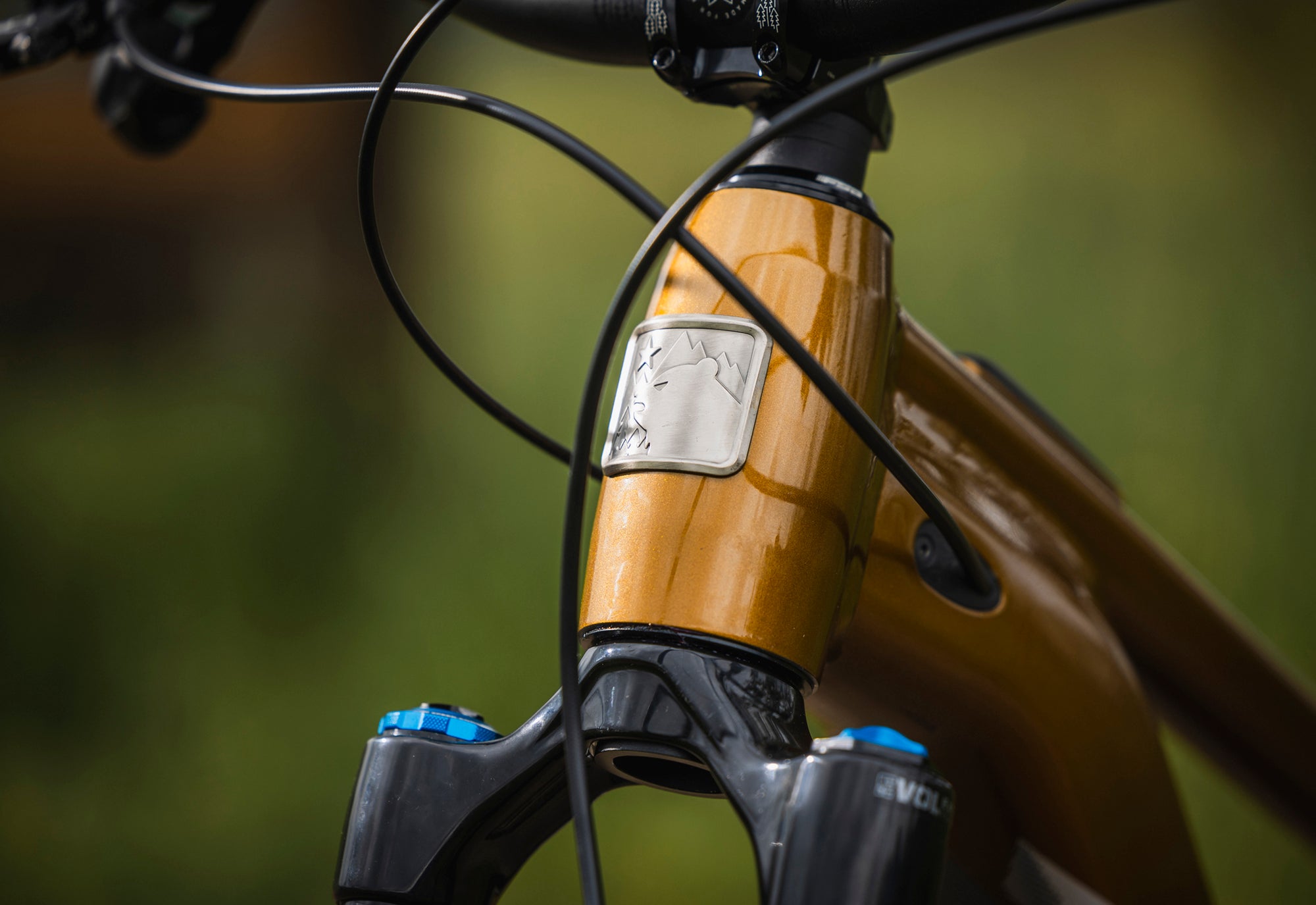

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Pedals

Marin MTB Plastic

Details Geometry

View All Geometry Configurations

Geometry	S	M	L	XL
A Stack	606.98	614.04	625.1	634.16
B Reach	445	465	485	515
C Headtube angle	65°	65°	65°	65°
D Headtube length	100	110	120	130
E Seattube length	390	400	425	435
F Seattube angle	77°	77°	77°	77°
G Toptube effective	585.13	607.22	629.32	661.41
H Bb height	348.5	348.5	348.5	348.5
I Bb drop	32	32	32	32
J Chainstay	440	440	440	440
K Wheelbase	1198.29	1222.52	1246.74	1280.97
L Standover height	693.65	696.01	709.94	719.93
M Fork offset	See specs	See specs	See specs	See specs
N Seatpost diameter	30.9	30.9	30.9	30.9
O Handlebar width	780	780	780	780
P Stem length	35	35	35	35
Q Crank length	160	160	160	160

Featured 2025 Rift Zone EL1 (INT)

Shimano Cues 10 Speed Transmission

Trans X Dropper Post

Bosch Performance Line SX Drive Unit

Marzocchi Bomber Fork

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

BLUE/NAVY / L

Rift Zone EL1
