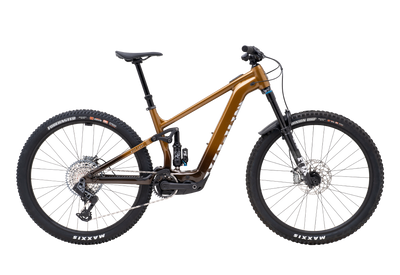

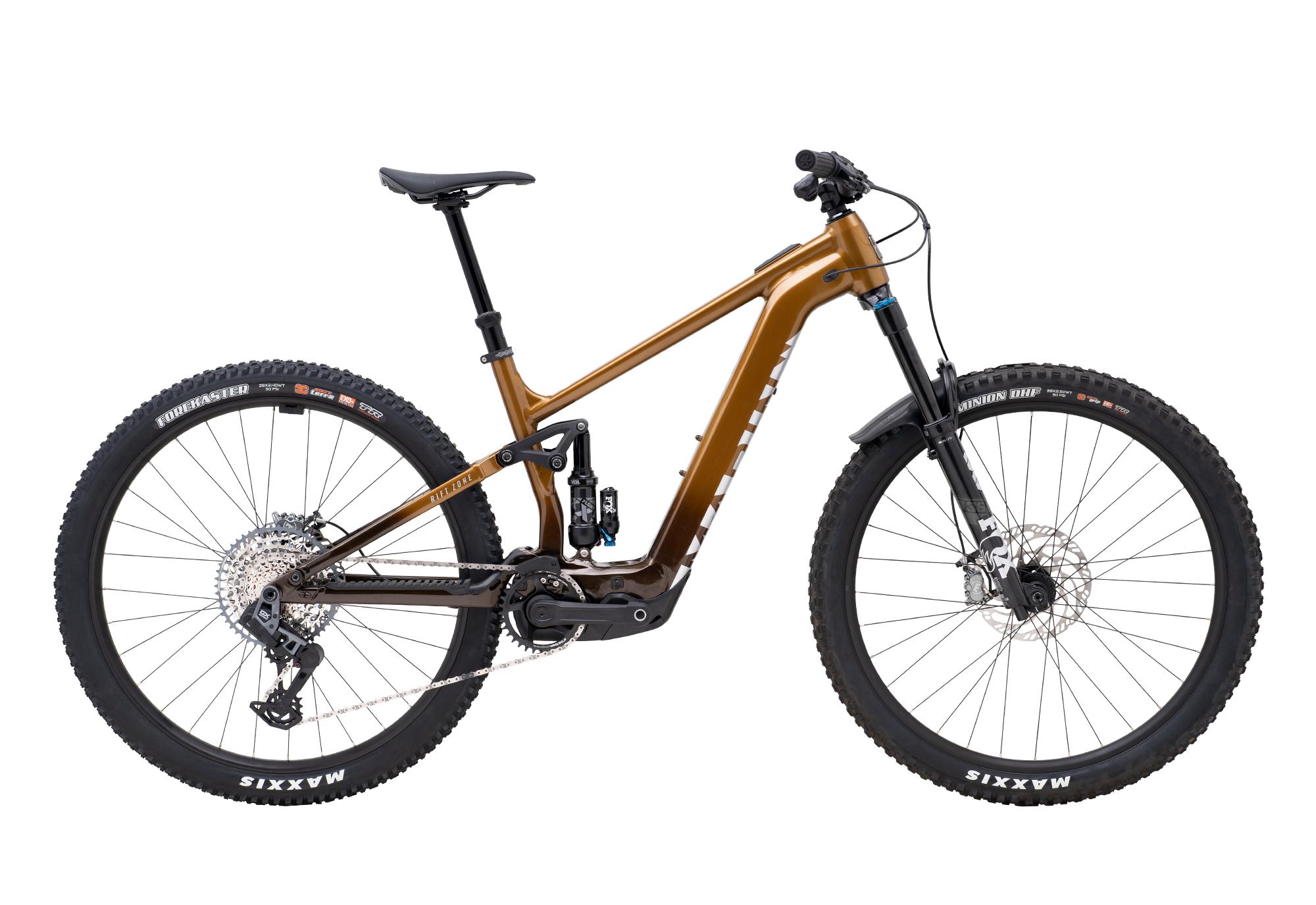

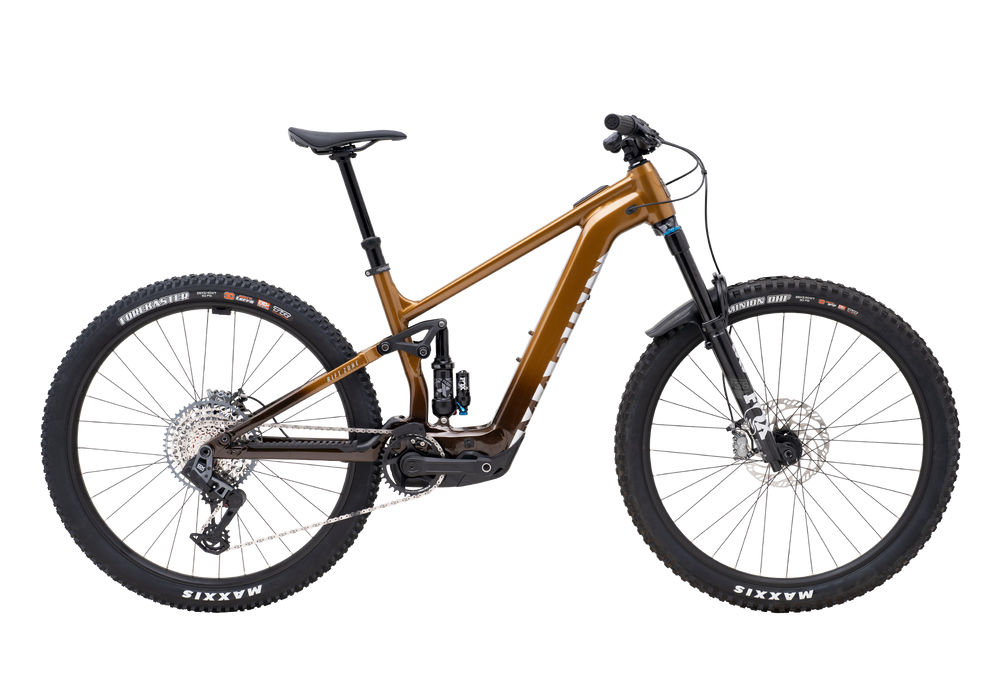

Rift Zone EL XR

$7,699.00 *

The all-new Rift Zone EL (""Electric Light"") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget it's an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.

* Manufacturer’s suggested retail price may not include additional shipping or preparation charges and does not include applicable US sales tax. Please contact your local Marin dealer for a quote.

Colour: TAN/BROWN

Size

Specifications Geometry Technology Services

Rift Zone EL XR

$7,699.00

Colour: TAN/BROWN

Size

Details Specifications

App

Bosch eBike Flow App

Range

15-55 miles/25-90km

Display

Bosch BRC3100 Systems Controller

Switch

Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

Battery

Bosch 400 Wh Internal

Motor

Bosch Performance Line SX, 600W, 55Nm

Frame

All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Rear Suspension

Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware

Rim

Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible

Hub Rear

Formula DC-711, 110x15, 6-Bolt, 32H

Hub Front

Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H

Spokes

14g Black Stainless Steel

Tires

Front: Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

Shift Lever

SRAM AXS Pod

Crankset

e*thirteen e*spec Plus Carbon, 160mm Length, 34T

Chain

SRAM GX T-Type

Cassette

SRAM CS-XS-1275 T-Type, 10-52T

Brakes Front

Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor

Brakes Rear

Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor

Brake Levers

Magura MT7 with HC3 Lever

Handlebar

Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Stem

Marin CNC, 35mm Length, 35mm Bar Bore

Grips

Marin Grizzly Lock-On

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

TranzX, YSI08 FL, 1x Remote,, 5mm Micro Adjust up to 25mm, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Pedals

Marin MTB Plastic

Details Geometry

View All Geometry Configurations

Geometry	S	M	L	XL
A Stack	606.98	614.04	625.1	634.16
B Reach	445	465	485	515
C Headtube angle	65°	65°	65°	65°
D Headtube length	100	110	120	130
E Seattube length	390	400	425	435
F Seattube angle	76.5°	76.5°	76.5°	76.5°
G Toptube effective	585.13	607.22	629.32	661.41
H Bb height	353.5	353.5	353.5	353.5
I Bb drop	32	32	32	32
J Chainstay	440	440	440	440
K Wheelbase	1198.29	1222.52	1246.74	1280.97
L Standover height	693.65	696.01	709.94	719.93
M Fork offset	44	44	44	44
N Seatpost diameter	34.9	34.9	34.9	34.9
O Handlebar width	780	780	780	780
P Stem length	35	35	35	35
Q Crank length	160	160	160	160

Featured 2025 Rift Zone EL XR (INT)

Sram GX AXS 12 Speed Transmission

Trans X Dropper Post

Bosch Performance Line SX Drive Unit

Fox 36 Performance Elite Fork

Find Your Fit

Your Height 5'3" / 160cm

slide the scale to your height measurement

You ride a

TAN/BROWN / S

Rift Zone EL XR
