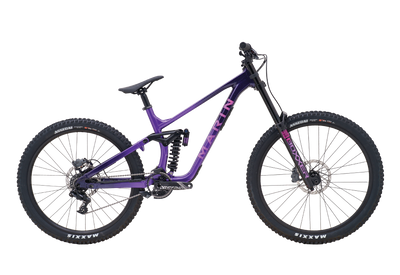

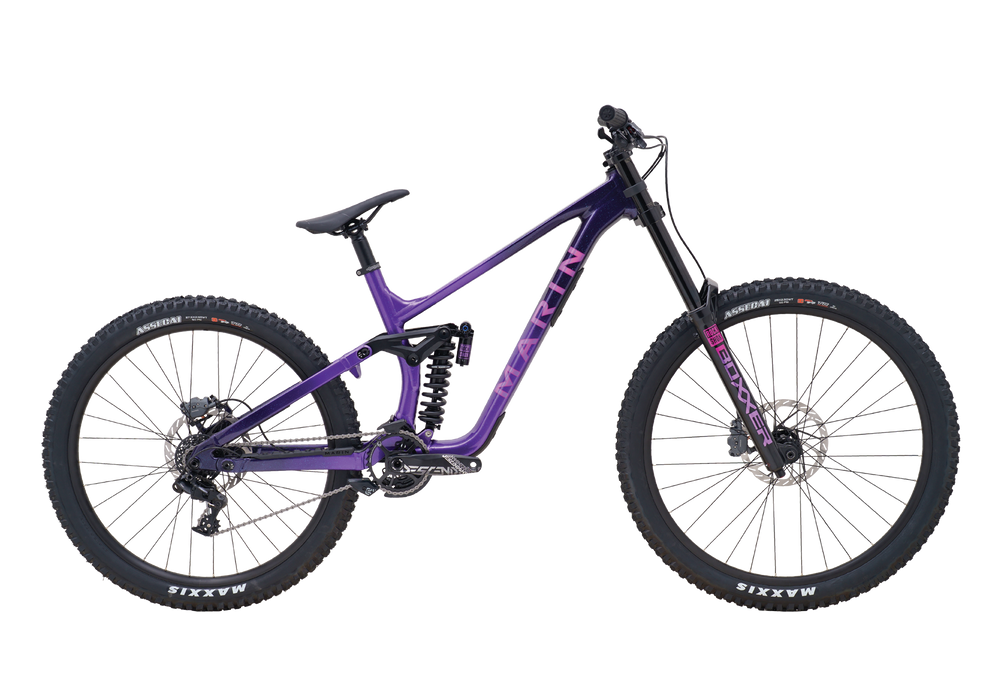

Quake

$5,199.00 *

Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples. During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth

* Manufacturer’s suggested retail price may not include additional shipping or preparation charges and does not include applicable US sales tax. Please contact your local Marin dealer for a quote.

Colour: PURPLE FADE

Size

Tech Documents

View tech documents here (opens in new tab)

Specifications Geometry Technology Services

Quake

$5,199.00

Colour: PURPLE FADE

Size

Details Specifications

Fork

Rock Shox Boxxer 3.0 RC, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset

Frame

All New Series 4 Alloy, 180mm MultiTrac LT Suspension, Adjustable CS Length/Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH

Front Suspension

Rock Shox Boxxer Charger 3.0 RC, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset

Rear Suspension

Rock Shox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune, S = 350 lb/in / M = 450 lb/in / L = 550 lb/in

Rim

Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear

Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body

Hub Front

Marin Forged, 110x20mm, 6-Bolt Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Maxxis Assegai, 2.5", Tubless Ready, 3C MaxxGrip, DH Casing

Shift Lever

Sram GX DH, 7-Speed

Crankset

Sram Descendant Alloy 34T, 165mm

Bottom Bracket

Sram DUB BSA

Chain

Sram PC-1110

Cassette

GS DH, 11-15T

Brakes Front

Sram Maven Bronze, 200mm HS2 Rotor

Brakes Rear

Sram Maven Bronze, 200mm HS2 Rotor

Brake Levers

Sram Maven Bronze

Handlebar

Sram Descendant DH Bar, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep

Stem

Sram Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length

Grips

Marin Grizzly Lock-On

Headset

FSA No 74

Seatpost

Marin Alloy, 34.9mm

Saddle

Marin Short Nose

Details Geometry

View All Geometry Configurations

Geometry	S	M	L
A Stack	631	640	640
B Reach	420	440	480
C Headtube angle	62.5°	62.5°	62.5°
D Headtube length	100	110	110
E Seattube length	390	415	430
F Seattube angle	76°	76°	76°
G Toptube effective	577	599	639
H Bb height	355	355	355
I Bb drop	24	24	24
J Chainstay	440	440	440
K Wheelbase	1227	1251	1291
L Standover height	-	-	-
M Fork offset	52	52	52
N Seatpost diameter	34.9	34.9	34.9
O Handlebar width	800	800	800
P Stem length	50	50	50
Q Crank length	165	165	165

Featured 2025 Quake

Sram GX DH Drivetrain

Series 4 Aluminum Frame featuring 180mm travel utilizing our MultiTrac LT 2 platform

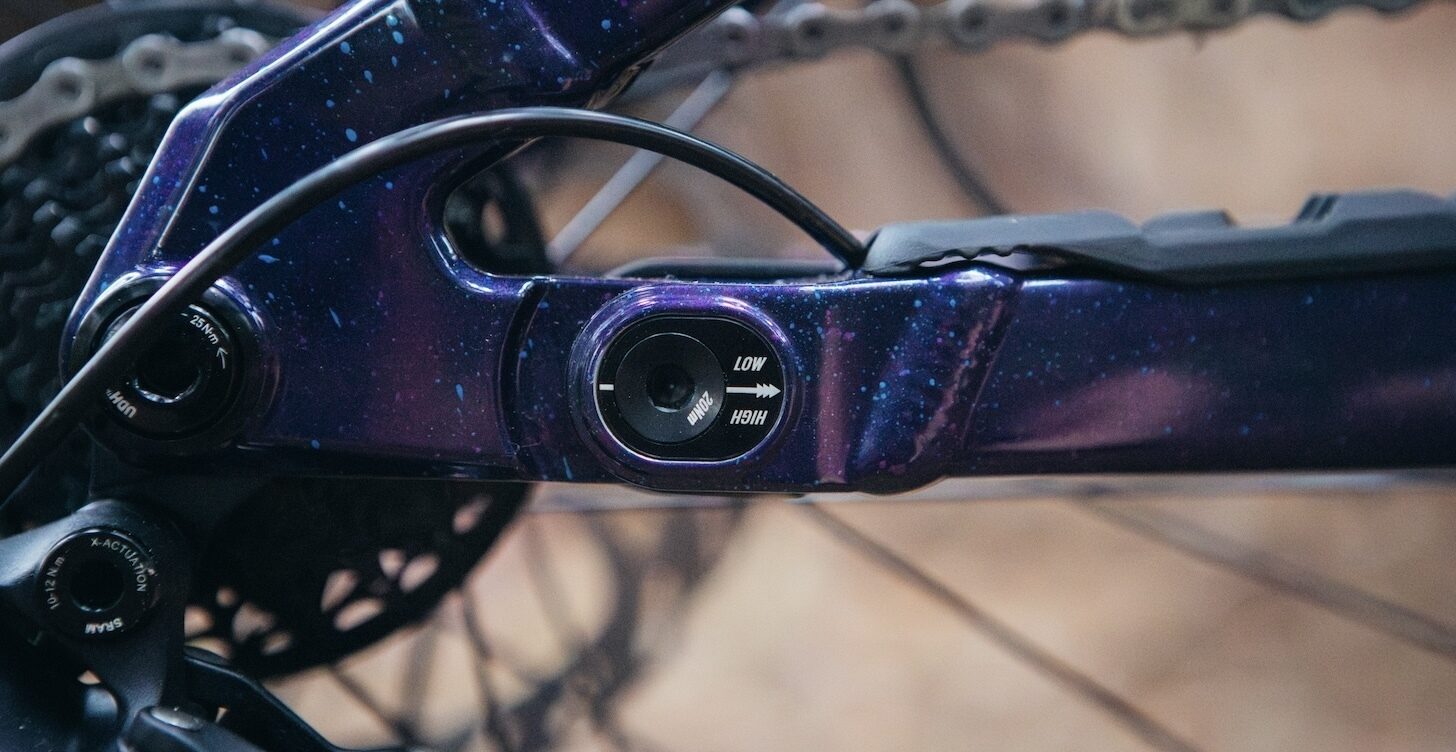

Built- in adjustability for head angle, BB height, chainstay length and fork configurations

Rock Shox Boxxer Charge 3.0 RC fork
