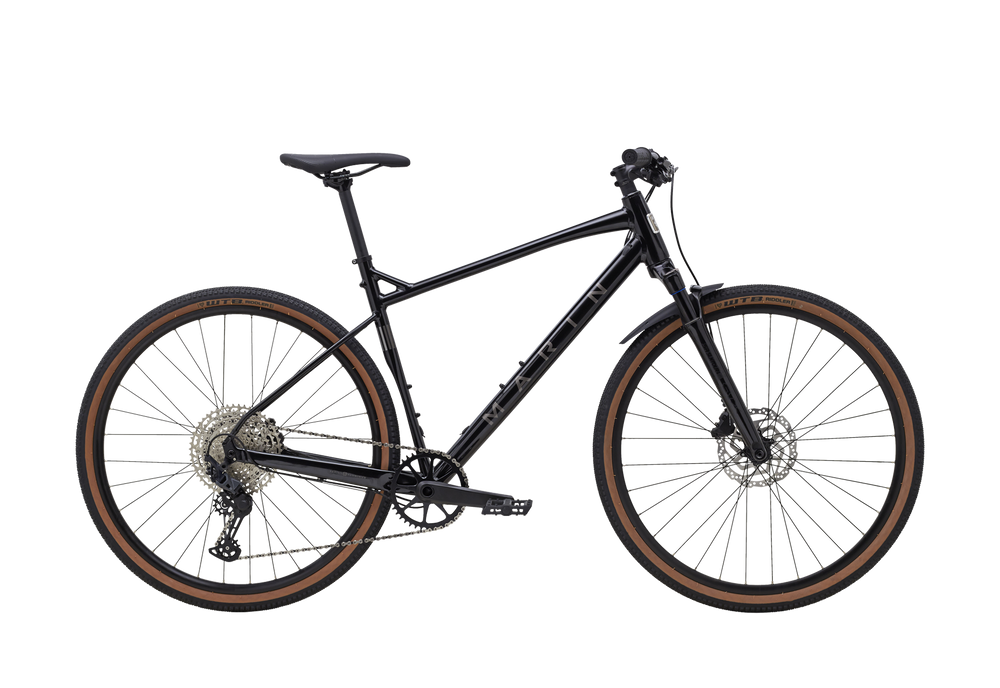

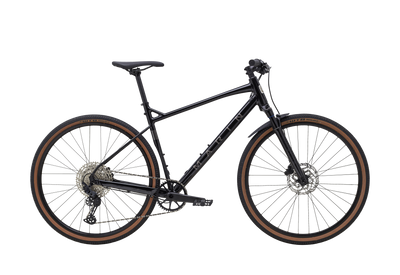

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
* Manufacturer’s suggested retail price may not include additional shipping or preparation charges and does not include applicable US sales tax. Please contact your local Marin dealer for a quote.

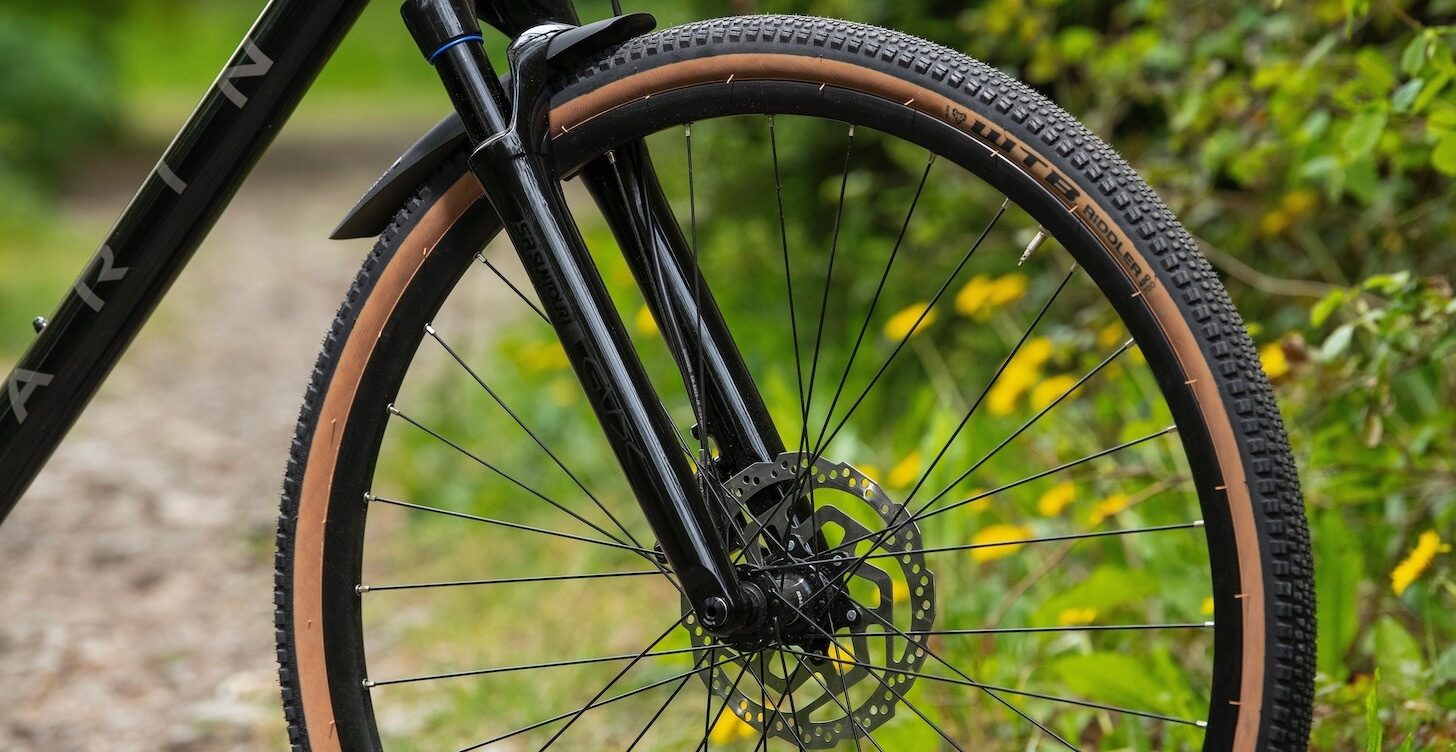

SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts

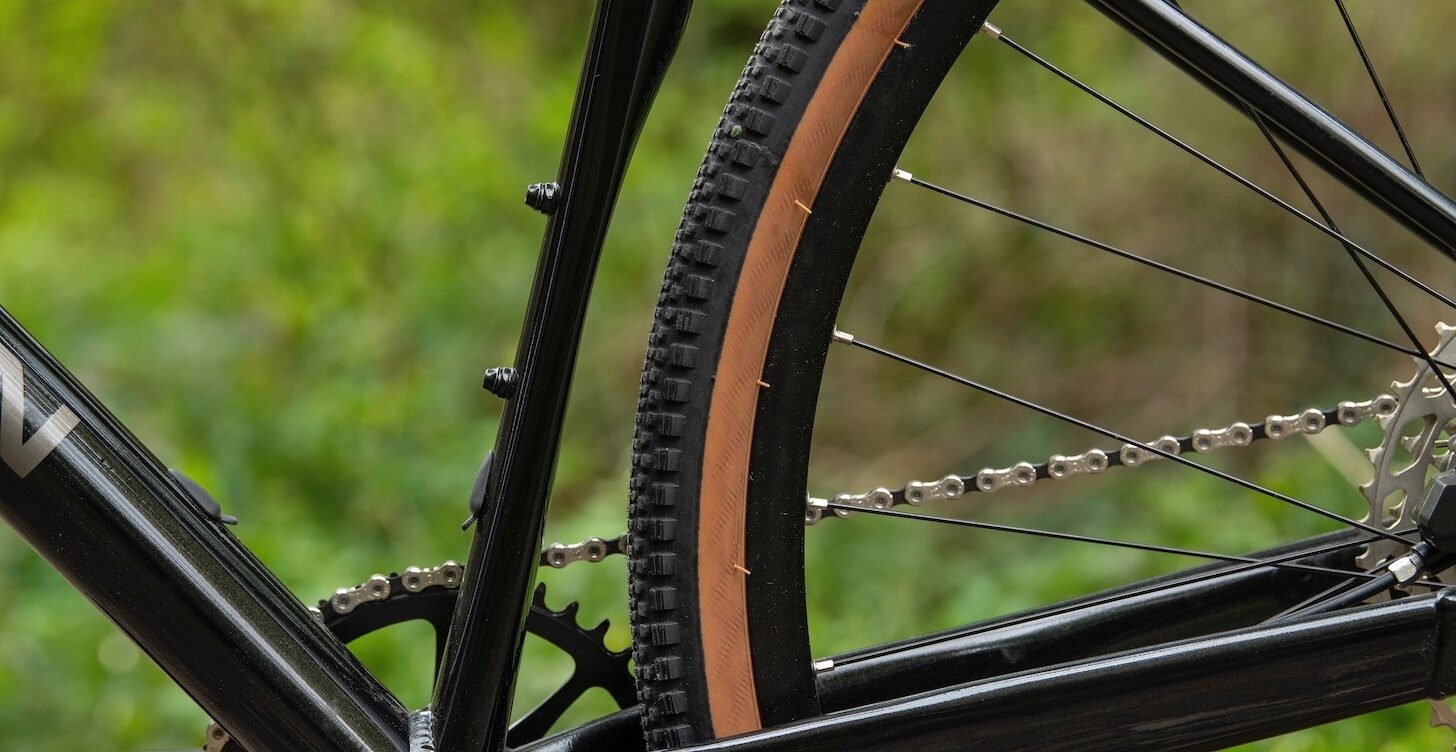

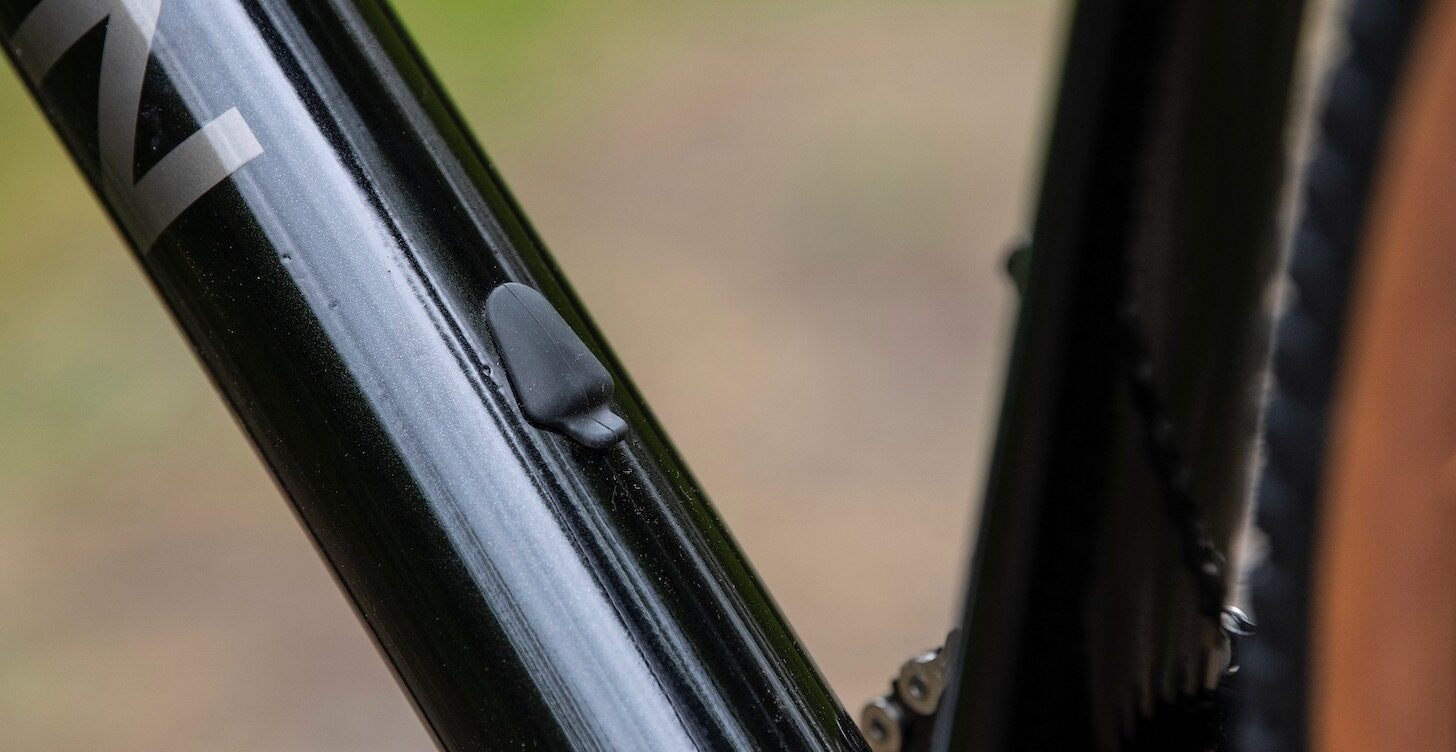

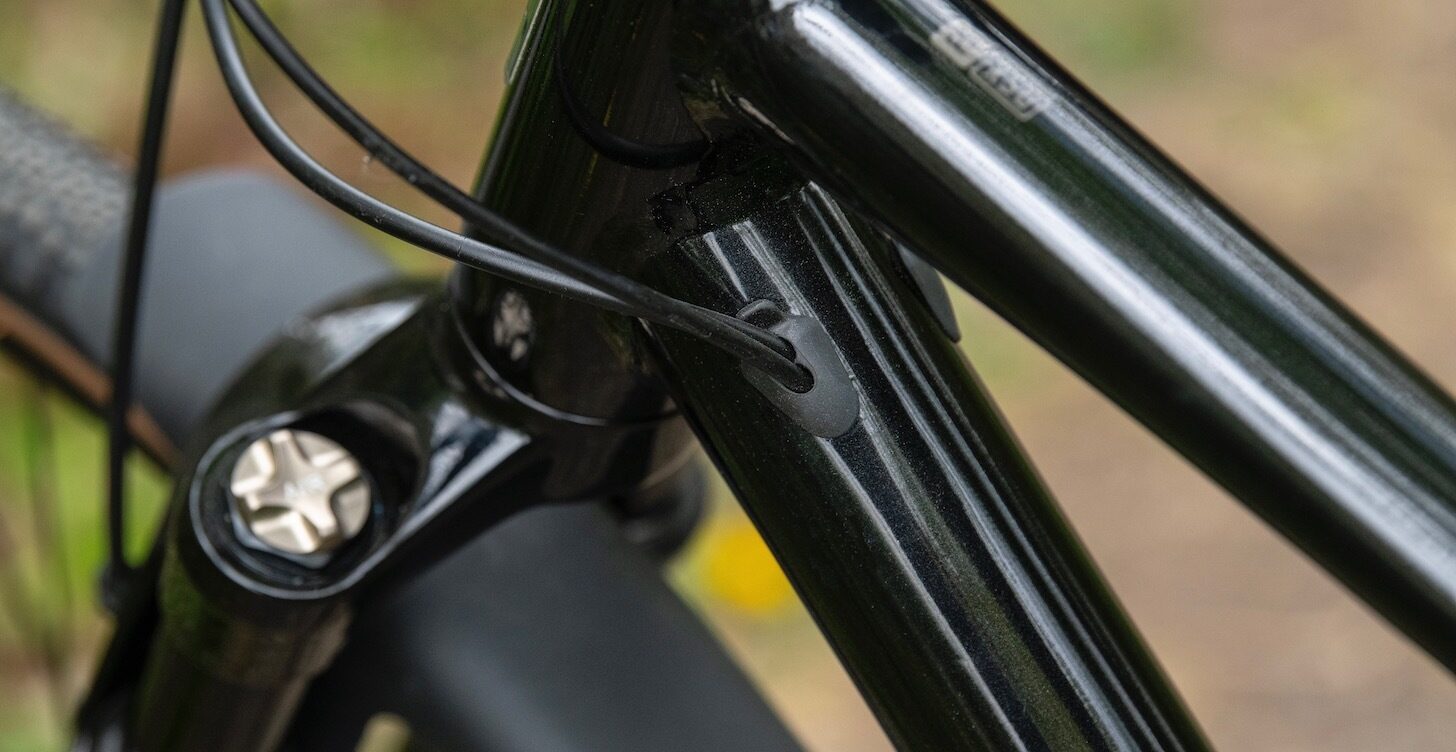

Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Forged Aluminum, 142x12mm, Disc Specific, 32H
Forged Aluminum, 100x12mm, Disc Specific, 32H
14g Black Stainless Steel
Vee Tire Co. Rocketman, 700Cx44mm

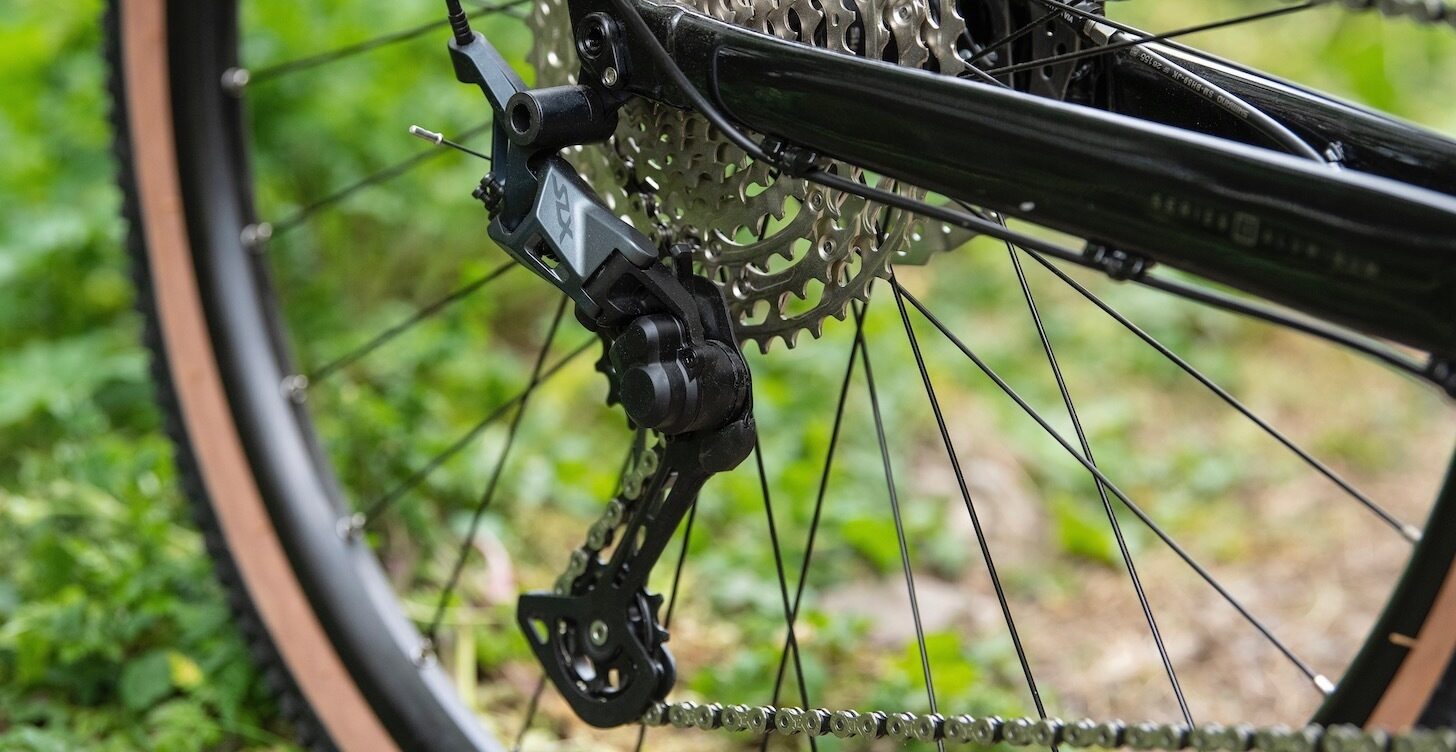

Shimano Deore, SLM6100, 12-Speed
Forged Aluminum, 42T Steel Narrow Wide Chainring
Sealed Outboard Bearing
KMC X12
Sunrace, 12-Speed, 11-51T
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Tektro Hydraulic
Marin MiniRiser
Marin 3D Forged Alloy
Marin MTB
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Marin Alloy
Marin DSX
Nylon Platform
| Geometry | S | M | L | XL |
|---|---|---|---|---|
| A Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| B Reach | 400 | 425 | 440 | 455 |
| C Headtube angle | 68.5° | 68.5° | 68.5° | 68.5° |
| D Headtube length | 100 | 120 | 150 | 180 |
| E Seattube length | 430 | 480 | 520 | 558 |
| F Seattube angle | 74° | 74° | 74° | 74° |
| G Toptube effective | 567.23 | 597.6 | 620.6 | 643.6 |
| H Bb height | 277.5 | 277.5 | 277.5 | 277.5 |
| I Bb drop | 82 | 82 | 82 | 82 |
| J Chainstay | 425 | 425 | 425 | 425 |
| K Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| L Standover height | 667 | 708 | 738 | 761 |
| M Fork offset | 47 | 47 | 47 | 47 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 680 | 680 | 680 | 700 |
| P Stem length | 70 | 70 | 70 | 70 |
| Q Crank length | 170 | 175 | 175 | 175 |
