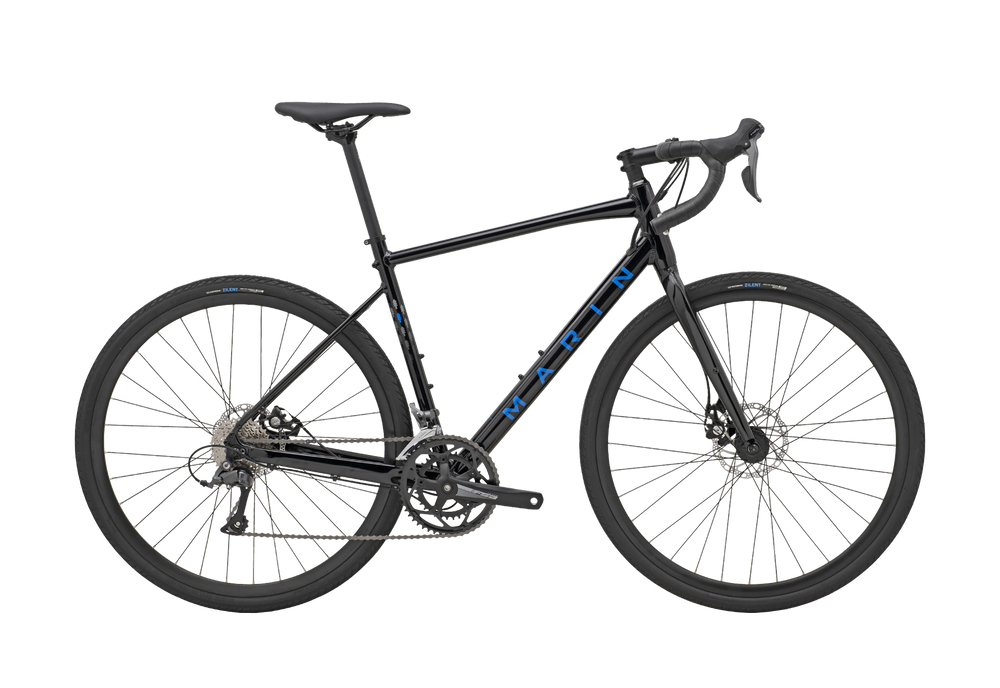

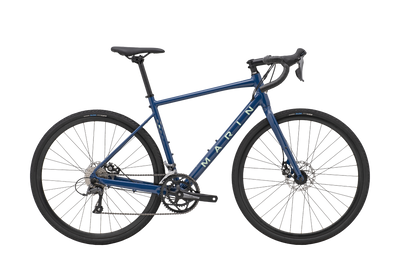

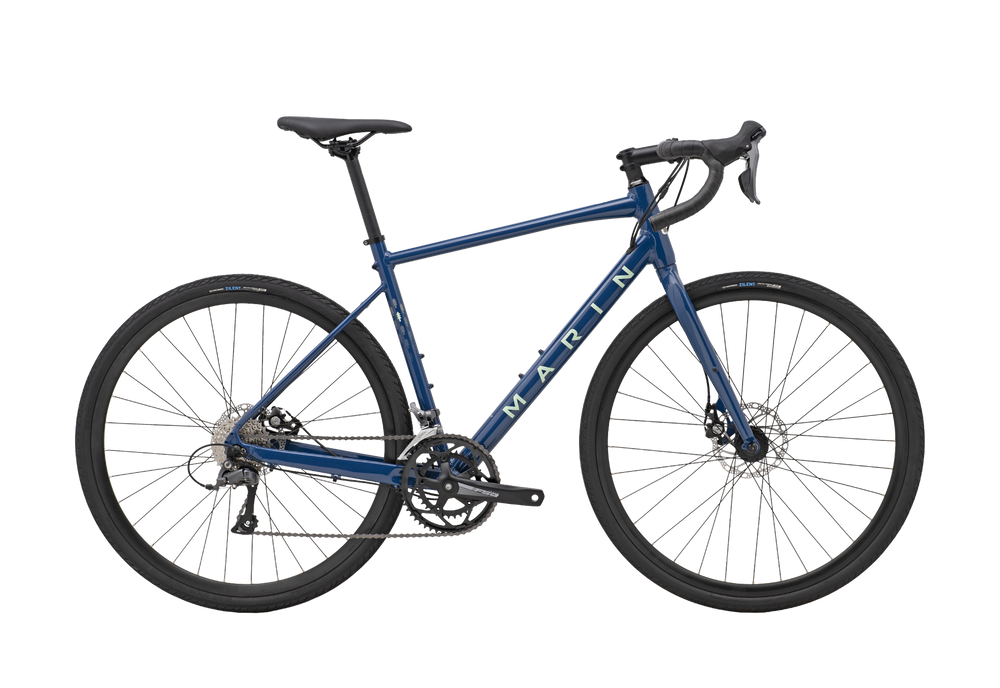

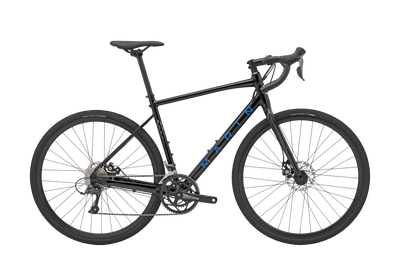

Gestalt
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
$999.00 *
* Il prezzo al dettaglio suggerito dal produttore potrebbe non includere ulteriori spese di spedizione o di preparazione e non comprende l'imposta di vendita applicabile negli Stati Uniti. Per un preventivo, contattare il rivenditore Marin di zona.
Details Specifications

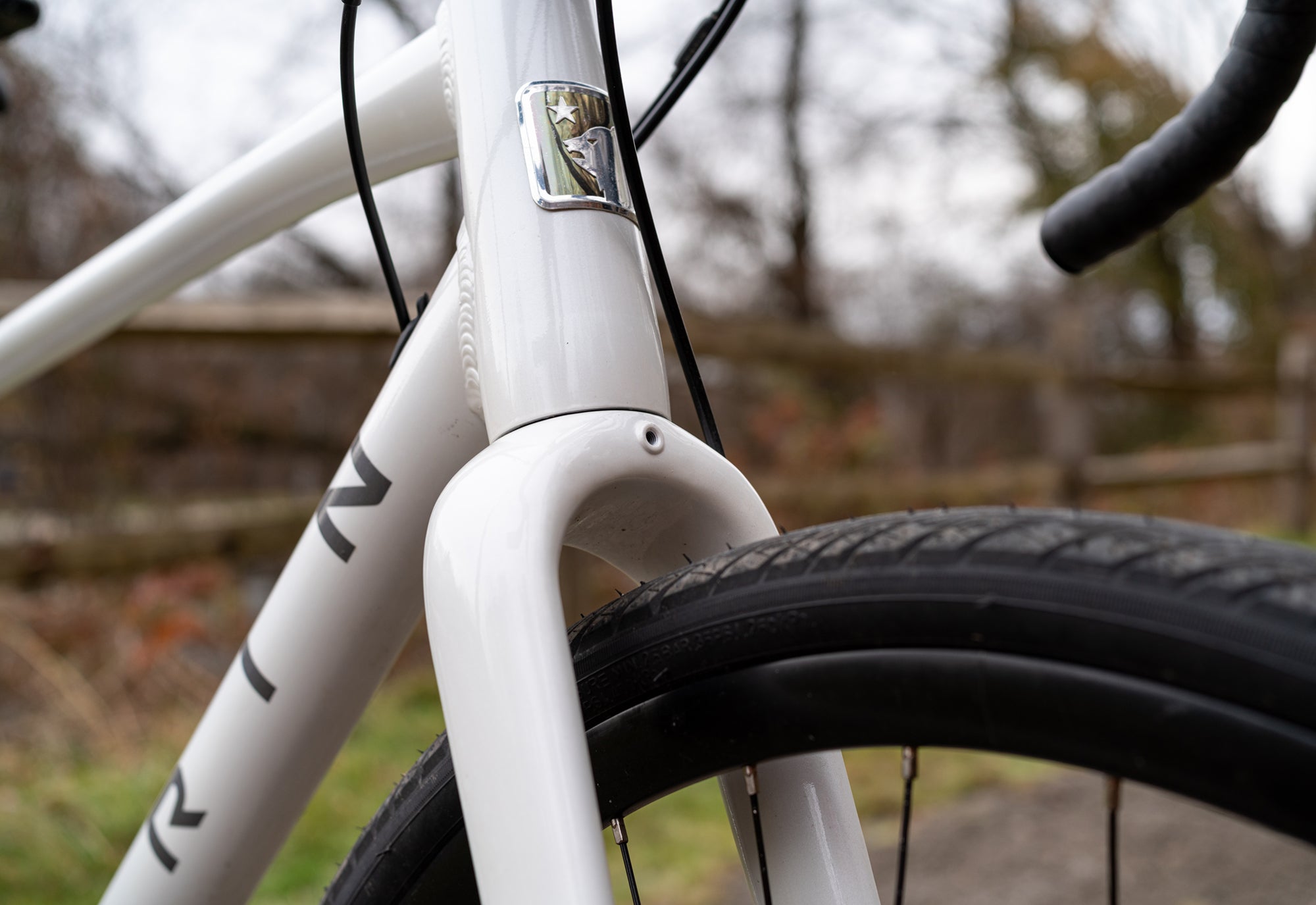

Fork
6061 Aluminum, Straight-Blade, Post-Mount Disc
Frame

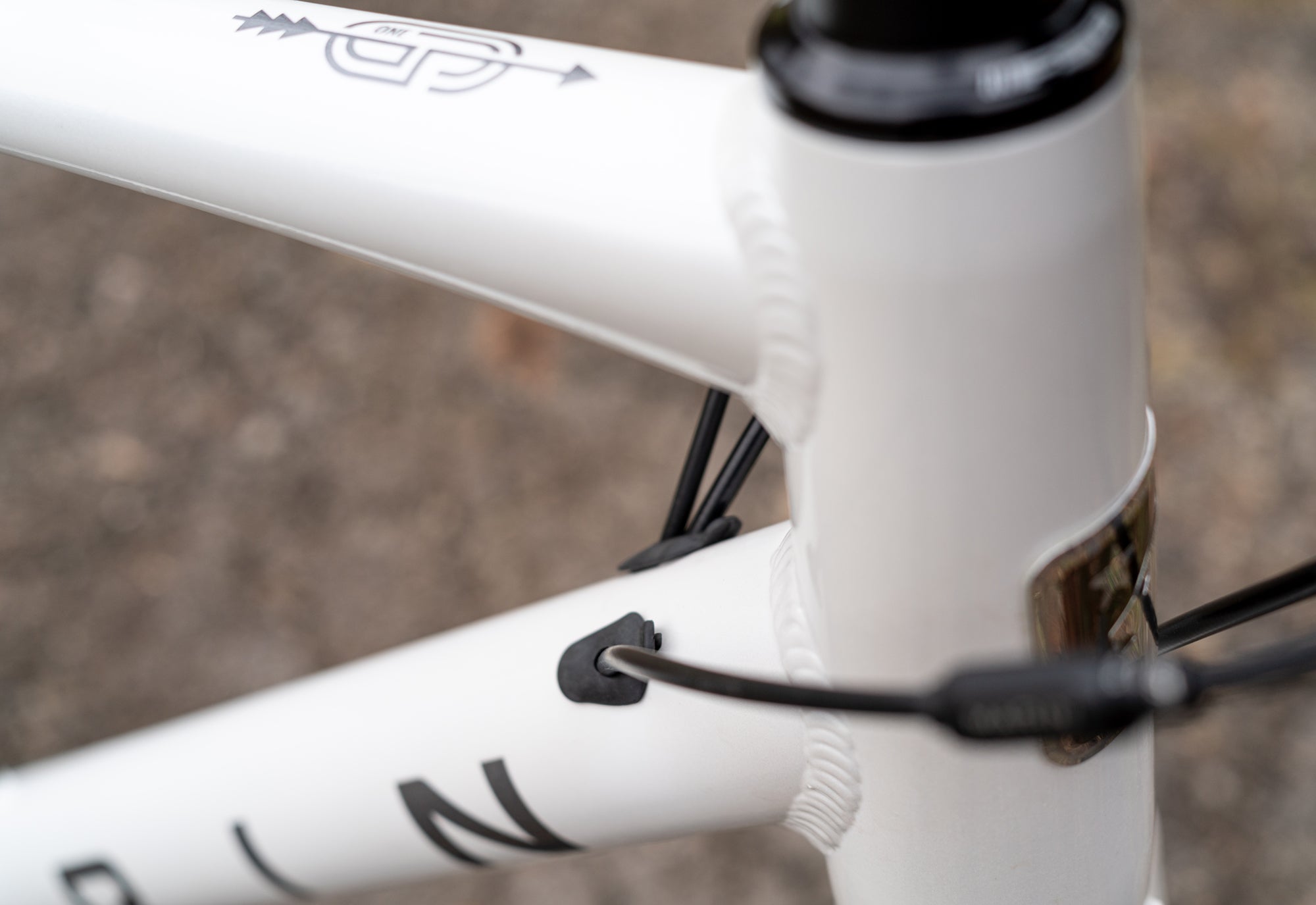

Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Rim
Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
Hub Rear
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Hub Front
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co., Zilent, 700x35
Shift Lever
Shimano Claris 2x8-Speed
Crankset
FSA Tempo Compact, 50/34T
Bottom Bracket
Sealed Bearing Square Taper
Chain
KMC Z8
Cassette
SunRace 8-Speed, 11-32T
Brakes Front

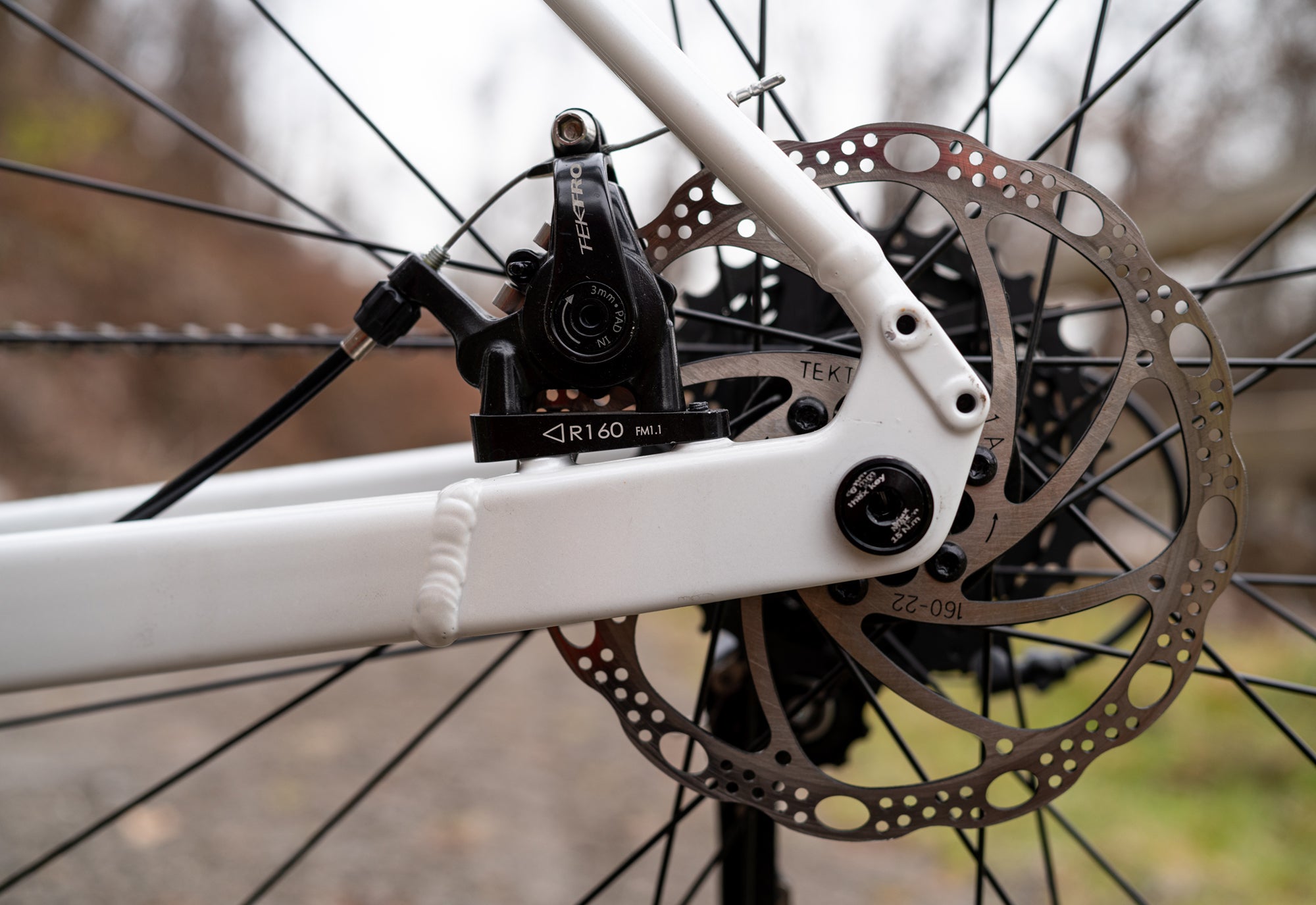

Tektro MD-C400 Road Mechanical Disc, 160mm Rotor
Brakes Rear
Tektro MD-C400 Road Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Stem
Marin 3D Forged Alloy
Grips
Marin Perforated Tape
Headset
FSA No.8B
Seatpost
Marin Alloy, 27.2mm
Saddle
Marin Beyond Road Concept
Pedals
Nylon Platform
| Geometry | 52 | 54 | 56 | 58 | 60 | 50 |
|---|---|---|---|---|---|---|
| A Stack | 568 | 582 | 601 | 620 | 641 | 552 |
| B Reach | 372 | 377 | 387 | 402 | 404 | 367 |
| C Headtube angle | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71° |
| D Headtube length | 135 | 150 | 170 | 190 | 210 | 120 |
| E Seattube length | 480 | 500 | 520 | 540 | 560 | 460 |
| F Seattube angle | 74° | 73.5° | 73.5° | 73.5° | 73° | 74.5° |
| G Toptube effective | 535 | 550 | 565 | 585 | 600 | 520 |
| H Bb height | 276 | 276 | 276 | 276 | 276 | 276 |
| I Bb drop | 78 | 78 | 78 | 78 | 78 | 78 |
| J Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| K Wheelbase | 1014 | 1024 | 1040 | 1060 | 1070 | 1008 |
| L Standover height | 732 | 755 | 775 | 794 | 814 | 714 |
| M Fork offset | 50 | 50 | 50 | 50 | 50 | 50 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 420 | 440 | 440 | 460 | 460 | 420 |
| P Stem length | 70 | 90 | 90 | 110 | 110 | 70 |
| Q Crank length | 170 | 175 | 175 | 175 | 175 | 170 |
In primo piano
Trova la tua forma fisica
La vostra altezza 5'3" / 160cm
far scorrere la bilancia fino alla misura della propria altezza
Si guida un
GLOSS BLACK / 52
Gestalt
